IVY Latching Relay
IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay. IVY latching relays are highly customisable with many variants of terminal arrangements, which can be made to suit customer's needs. Shunts and current transformers can also be included to special order.

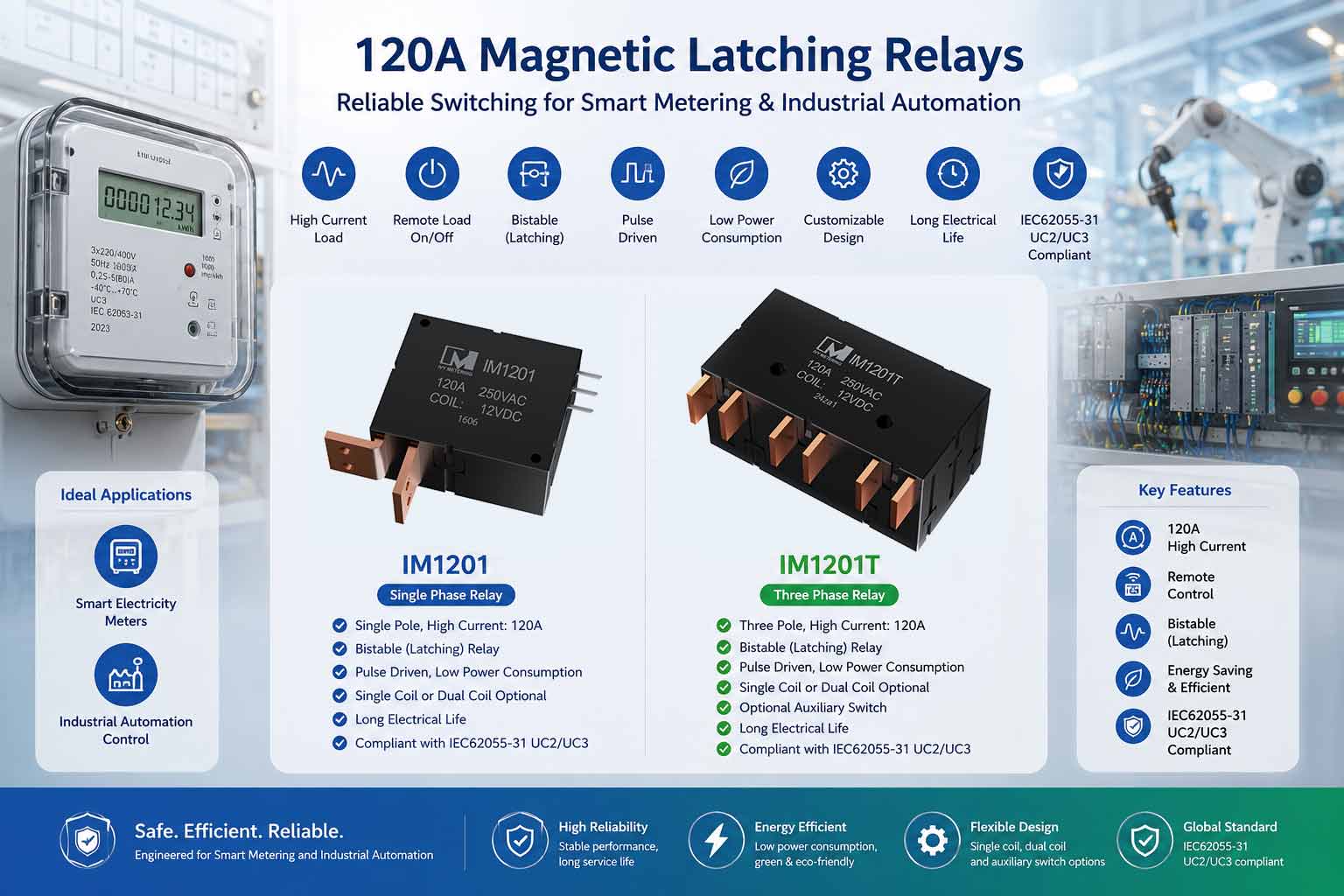

IM1201 is a small industrial bistable latching power relay with continuous current up to 100A, and switching 100A 250VAC. Single and Double coil latching. Used in utility meters and for solar, EV charger and industrial control etc.
IM1201 Main Features
Switching Capacity:120A, 250VAC
Single Phase Relay; Single/Dual Coil Optional
4kV dielectric strength between coil and contacts
Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt
RoHS compliant materials and process
IEC62055-31 UC3 Certified
Product Parameters
Rated Load: 120A 250VAC
Contact Form: 1A/B
Rated Coil Consumption: 2.0 / 4.0W(30ms)
Contact Material AgSnO2
Compact Size: 42*35*21.5mm
Max. Switching Voltage: 250VAC
Max. Switching Power: 33240VA
Contact Resistance: <2mΩ
Pick-up Time: 30ms
Release Time: 30ms
Electrical Endurance: 5000 Cycles
Mechanical Endurance: 100000 Cycles
Temp.Rise: ≤55K When Ambient 40℃
Ambient Temperature: -40℃~70℃
Ambient Humidity: 45%~90%RH
Application Cases
1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.
4) New Energy Field: EV charger, PV Inverter
